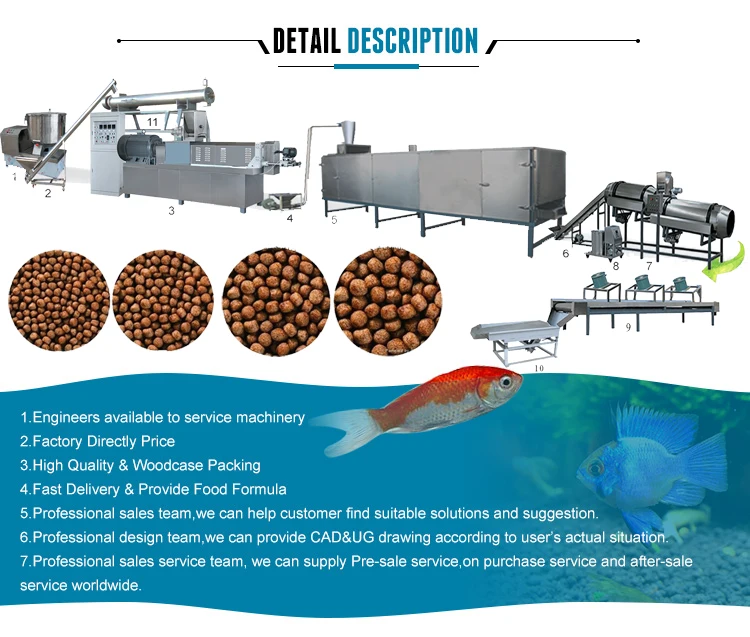

1.Description of Fish food making machine:
2).You can get various size of fish feed from 0.8-14mm and various shapes of pet food, such as: rings, triangle, core filling pet food etc.
3).We not only have the basic fish feed formula , but also the professional formula based on different kinds of fish.
4).The machines performance and products quality reach to the most advanced level in the world.
5).High efficiency, low consumption, easy to operate and maintain.
We provide complete installation and operation manual in english for all the machines supplied by us.customer can install and operate machines using the same.If needed,we can send our technician for the installation of the machines a customer’s place on chargeable basis.
Our expert technician can install the machines and take the trial production as per the requirement of the customer.Our technician also train machine operators at the customer’s place to operate and troubleshoot all the problems so that later on they can manage everything easily without any problem.
After the installation,customer can take help from us any time in any of the following manner:
1.By calling our technician to get telephonic advice.
2.By sending mail to us to get the solution by mail. macaroni making machine
3.To chat live with our technician to get online help.
4.To invite our technician to visit customer’s place for troubleshooting,if needed.
3.Technical Parameter:
| Model | SLG65 | SLG70 | SLG75 | SLG85 | SLG95 |
| Installed power | 76kw | 95kw | 140kw | 178kw | 280kw |
| Production Capacity | 120-150kg/h | 200-260kg/h | 300-400kg/h | 400-600kg/h | 1.0-2.0 T/H |
| Size MM | 1600*1800*2000 | 1800*2000*2200 | 2000*2000*2200 | 2500*2600*3000 | 3000*3200*3500 |
4.Raw materials:
wheat/ corn flour,rice flour,bean flour,wheat bran, fish meal, born powder, animal oil,fresh fish/meat,vegetable,fruit and so on
 | Raw material mixer Application:mix the raw materials, fast speed, no leakage. Capacity:20kg/time, 50kg/time, 100kg/time, 200kg/time, 500kg/time etc. Material:stainless steel Power:3kw, 4kw, 7.5kw |
 | Screw feeder Application:convey the Power :1.5kw Capacity:equipment with the output Dimension:4000*590mm |
 | Steam Twin screw Fish food extruder Application:To make the raw materials into required shape and size Capacity:400-600kg/h(SLG85) Power:75kw Working Principle: It consists of feeding system, extruding system, cutting system, heating system; main motor and controlling system. |
 | Air converyer Application:convey the shaped material to dryer oven Power:0.75,1.1,2.2kw(accorging to capacity) Capacity:100-150kg/h,220-250kg/h,800-1200kg/h Material:stainless steel |
 | Dryer Heating type:electrical, steam, gas fired, diesel fired heating type Capacity:100kg/h to 10 ton/h Material:stainless steel, carbon steel Working Principle:The heating source can be electric, gas, steam and fuel. The material is stainless steel 304. It consists of rack system, |
 | Flavoring machine Application:This device is applicable to a wide range of puffing corn snacks and fried snacks in seasoning and coating oil. Power:0.75kw Type:single drum or double drum Capacity:100kg/h to 500 kg/h Material:Stainless steel |
 | Cooling equipment Application:used to cool the final pet food and transfer pet food to packing machine Power0.75kw, 1.6kw Capacity:100-1200kg/h Material:stainless steel(backplate) Remarks:Optional equipment |
 | Packaging machine Usage:To pack the fish feed with required weight Type:Automatic Flowing Process: Manual Bag placing→Automatic filling→Automatic weighing→ Automatic bag conveyor→Automatic bag sewing or heat sealing Weight range:1-5kg/bag, 5-25kg/bag, 25-50kg/bag Material:stainless steel, carbon steel |
Packing: inside plastic bag, outside wooden case for Machine(Based on the customers' need adopt the wooden case or wooden pellets, etc.).
Delivery Details : 3-30 days after order.
1.Pre-shippment Inspection
a.) Supplier should trial run whole line at supplier's factory before shipment;
b.) Supplier has to run the machine at least 1hour for each machine;
c.) All raw materials for that trial run to be arranged by supplier at their cost.
2.Service&Guarantee
a.) Free consultation service before, during, and after sales;
b.) Free project planning and design services;
c.) Free debugging of equipment until everything is functional;
d.) Free management of equipments' long distance shipping from seller's factory to named place by buyer;
e.) Free training of equipment maintenance and operating personally;
d.) Free new production techniques and formulas;
Jinan FLD Machinery Co; Ltd. is a professional supplier of food processing machines. Our company's Motto is: "Technology Makes Easy". We offer to cooperate with our customers for mutual and beneficial development.
We have through the years established good working relationship with some reputable organizations both at home and abroad with outstanding goodwill.Our main products line include food extrusion machine, soya meal/meat processing machines, industrial micro wave oven, packaging machines, rice cake machine etc. Most importantly, we also provide formulas, technology supports, machine inspection service, etc.
If you have any questions about the Mini floting fish food machine, please don't hesitate to contact with us. We are looking forward to your inquiry and make a long business relationship with you in the future!
